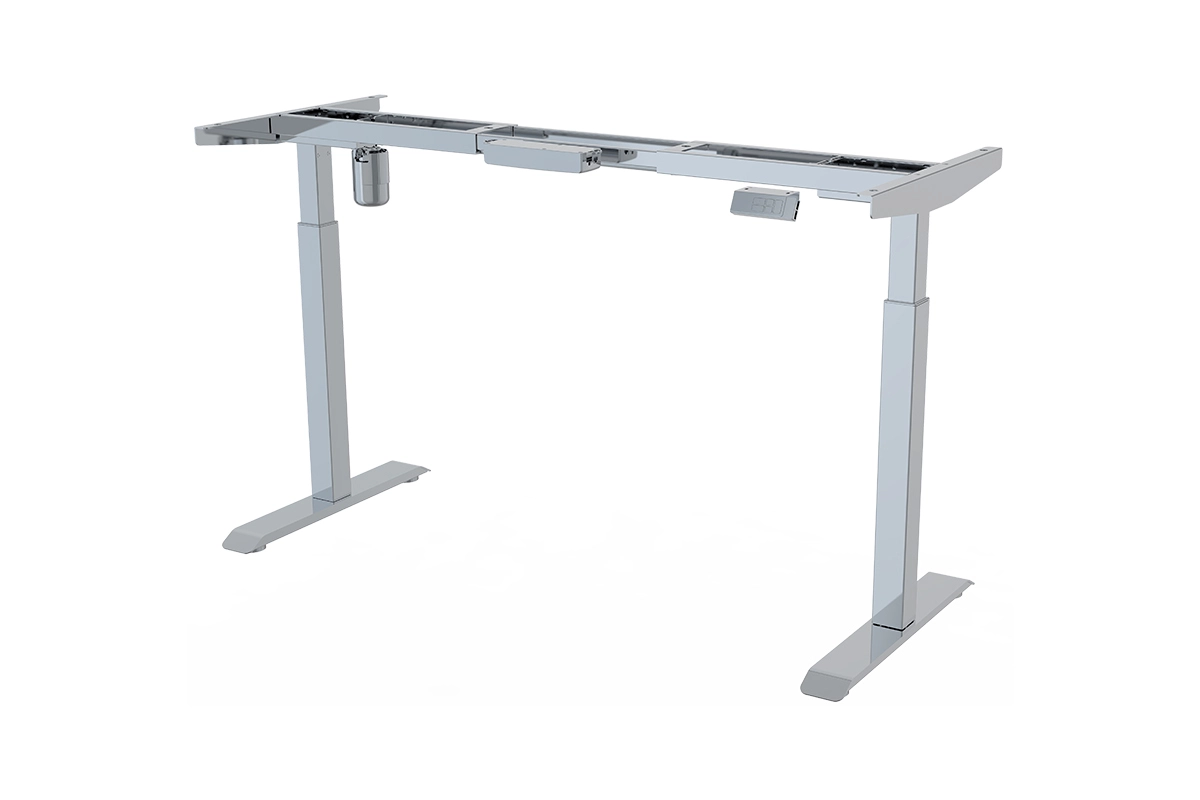

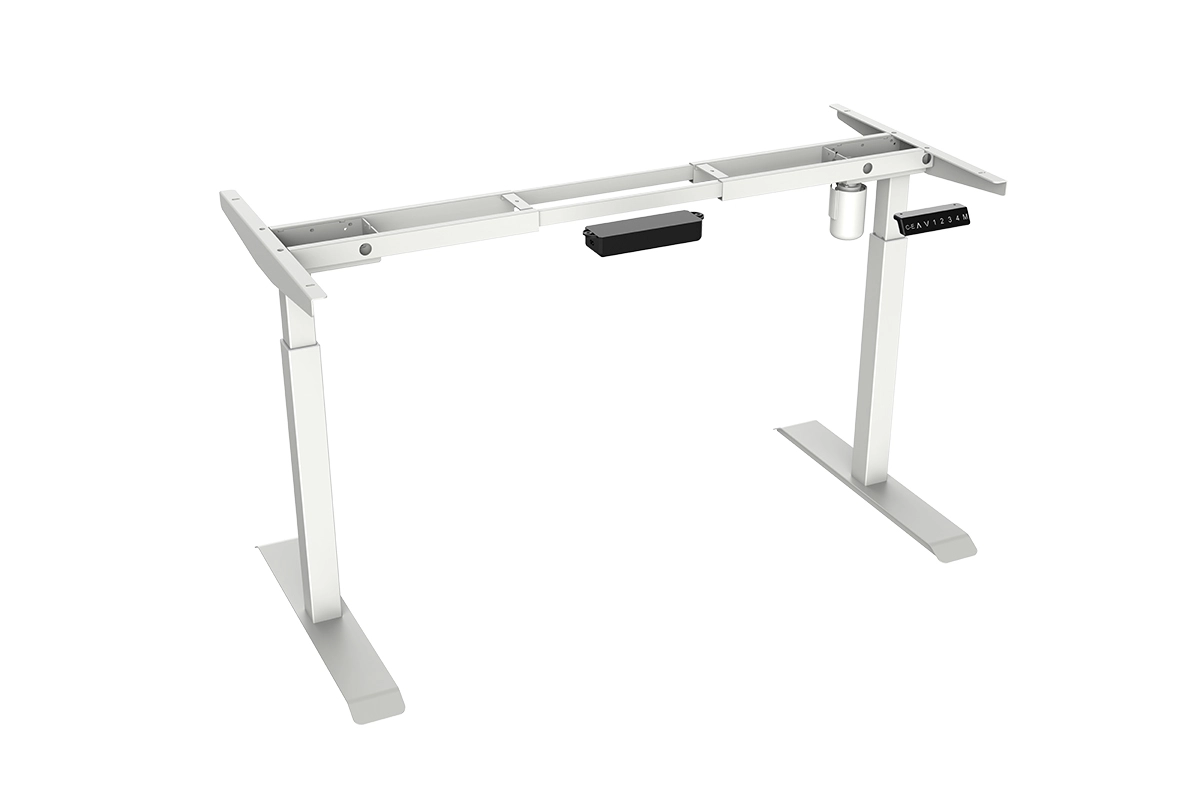

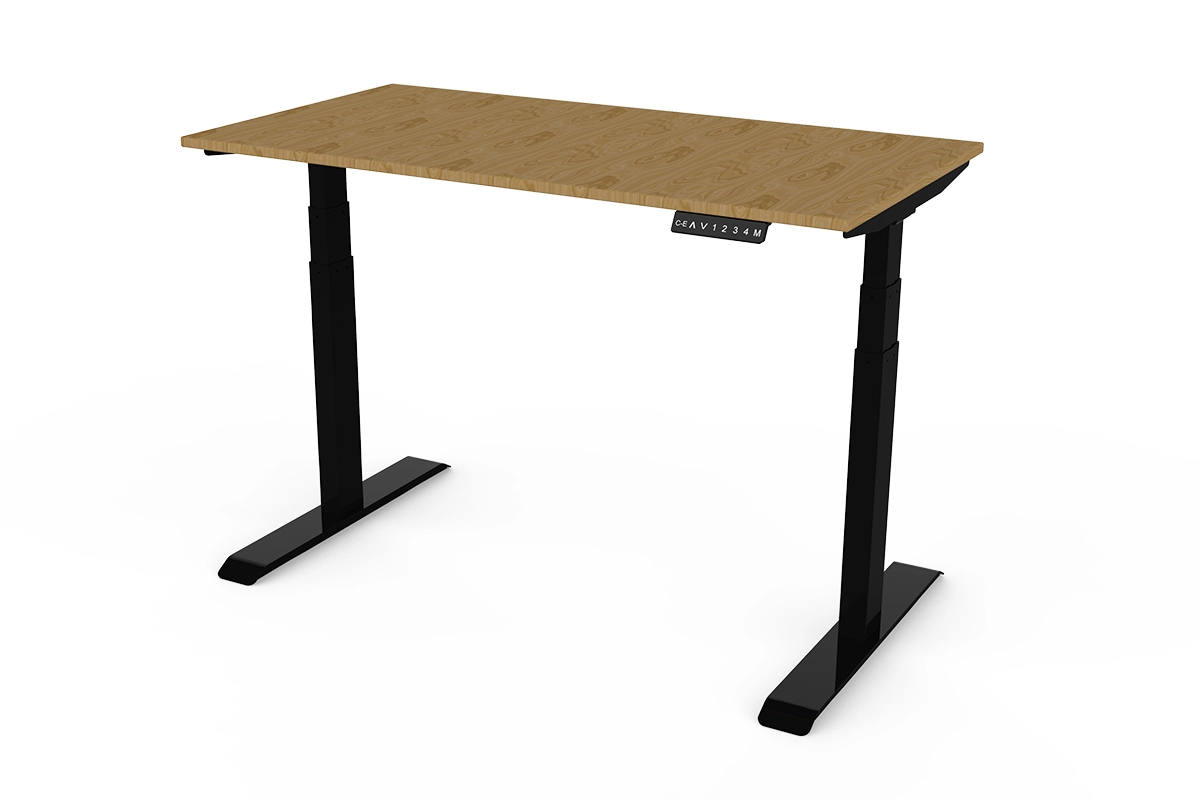

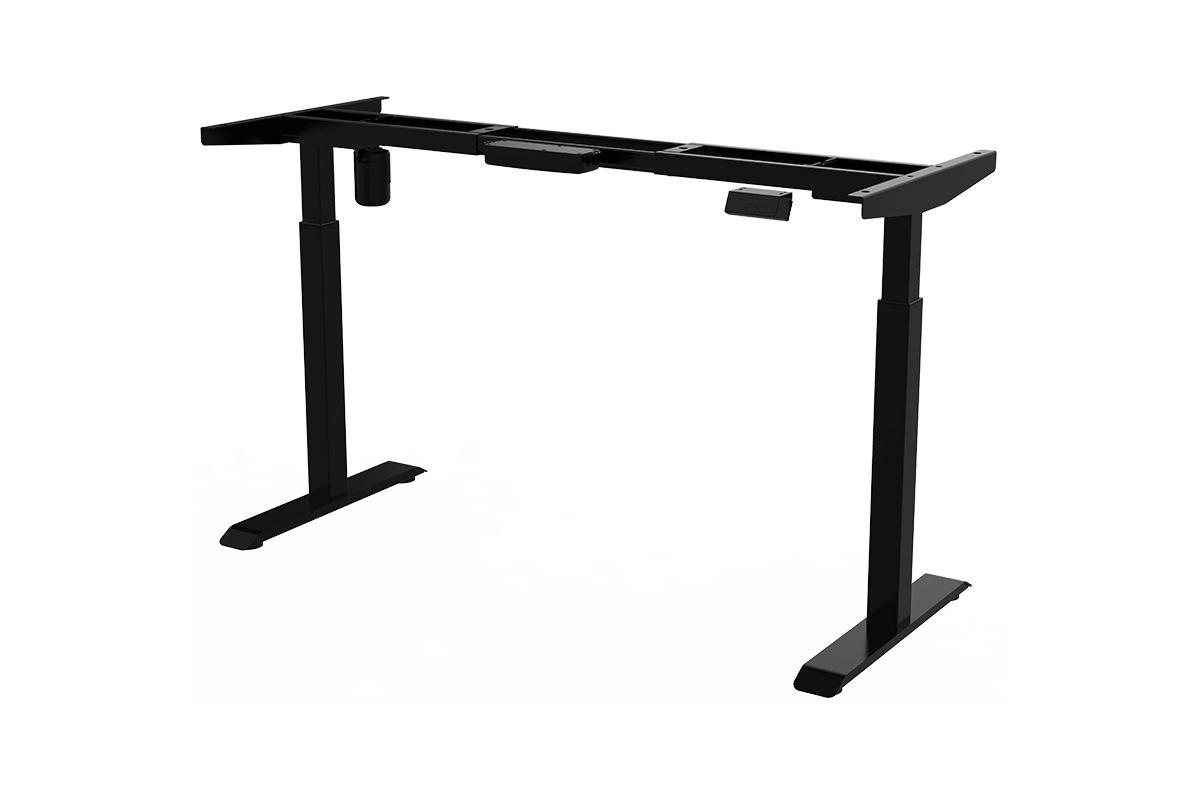

2-leg 1-motor standing desk frame
A motor-driven height-adjustable sit-to-stand desk allows users to maintain an ergonomic posture both while standing and sitting effortlessly & efficiently, so that can improve blood circulation, reduce backache/pain/stress/tension, and feel better as work/study.
Description
Compared with a manual standing desk frame, the 1-motor standing desk frame features electric control systems that allow users to adjust desk heights and to maintain ergonomic postures both while standing and sitting effortlessly and efficiently, so that improves blood circulation, reduces backache/pain/stress/tension, and feel better as work/study.
Compared with a dual-motor standing desk, the single-motor standing desk is budget options, while won’t sacrifice too much performance of a height adjustable standing desk.
Highlights:
- Durable & stable — Adopt electric control systems from Timotion and SAJ.
- Quality material — Stainless steel thickness from 1.2~1.5mm; Powder coating thickness 60~120μm ensures the textured & elegant surface without orange peel.
- Quiet — Noise rate is less than the buzzing of a refrigerator when it’s working.
- Stable — Loading capacity ranges from 80kg to 100kg. — High-weight capacity suitable for heavy-duty use and accommodates multiple monitors or other equipment.
- Safe — Sensitive anti-collision function.
- Optional: Bluetooth function, safety screen lock function, etc.
- Quality service — Low MOQ for OEM/ODM tailored standing desks.
Applications: Office single workstation, Co-working station, Home office.
Parameter
|
Model |
U220 series |
M220 series |
E220 series |
|---|---|---|---|
|
Product name |
Single-motor standing desk frame |
||
|
Drive mode |
1 motor |
||
|
Stages |
2 stages |
||
|
Max loading |
90kg | 198lbs |
90kg | 198lbs |
80kg | 176lbs |
|
Speed |
25mm/S | 0.98″/S |
25mm/S | 0.98″/S |
23mm/S | 0.90″/S |
|
Noise rate |
<49DB |
<49DB |
<49DB |
|
Height range |
710-1160mm | (27.9″-45.6″ / Customized |
740-1240mm | 29.1″-48.8″ / Customized |
710-1180mm | 27.9″-46.4″ / Customized |
|
Beam |
Double beams |
Double beams |
Single beam |
|
Bracket |
600mm | 23.6”(L) / Customized |
575mm | 22.6”(L) / Customized |
450mm | 17.7”(L) / Customized |
|
Tube shape & size |
Square 75*75mm | 2.95″*2.95″ |
||
|

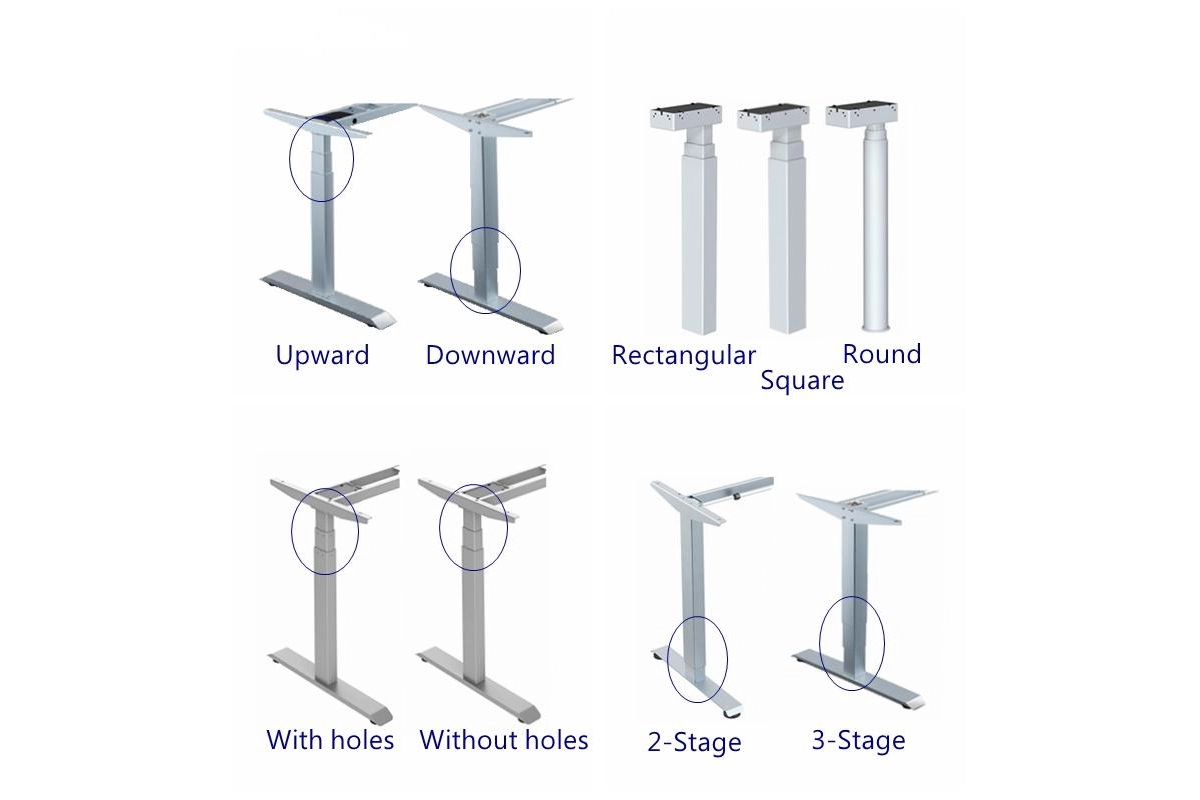

Column shape |
Upwards / Downwards |
Upwards / Downwards |
Downwards |
|

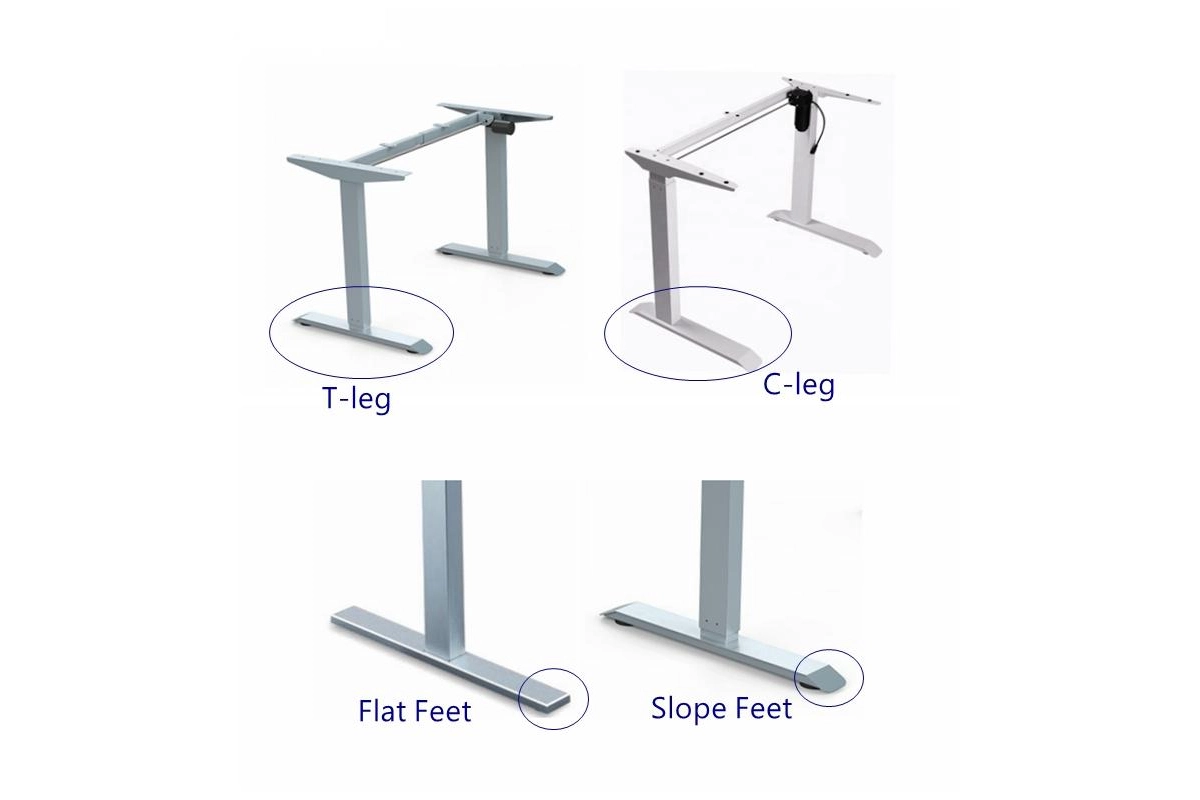

Desk foot |
Slope / Flat shape |
Slope / Flat shape |
Slope / Flat shape |
|
Thickness of painting |
60-120μm |
60-120μm |
60-100μm |
|
Colors |
White / Black / Grey / Customized |
||
|
Functions options |
Anti-collision |
Anti-collision |
Anti-collision |
|
Available voltage |
100V-240V; 50/60Hz |
||
|
Control systems brand |
Vaka |
SAJ |
Vaka |
|
Plug standard |
US / UK / EU / AU |
||
|

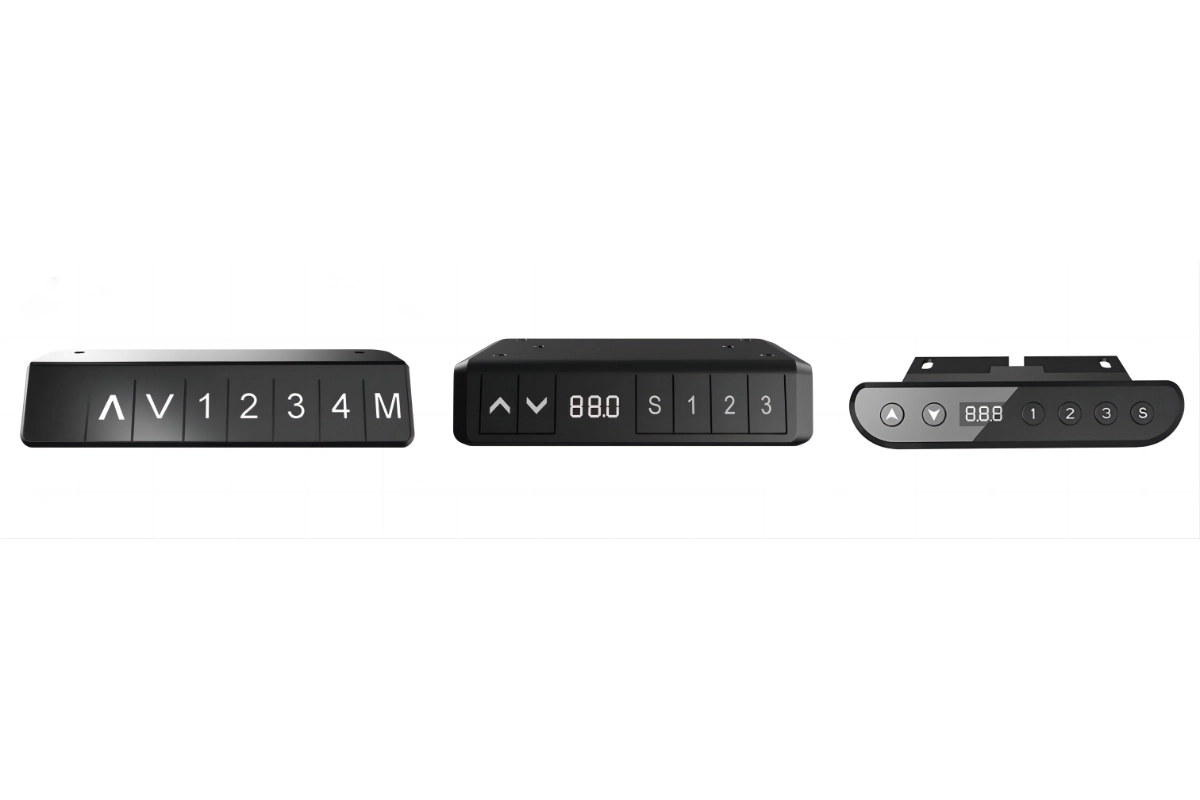

Handset |
4-memory buttons |
3-memory buttons |
3-memory buttons |
|
Certificate |
CE, UL, SAA, RoHS, BIFMA |
||
|
G.W. |
27kg | 59.5lbs |
25kg | 55.1lbs |
18kg | 39.8lbs |
|
Package size |
108 * 32 * 24cm |
108 * 32 * 24cm |
113 * 23 * 20cm |
|
Container loading capacity |
288pcs/20GP; 648pcs/40GP; 720pcs/40HQ |
||
|
Warranty |
5years |
||
|
Suitable tabletop size |
1100-1800mm | 43.3”-70.8”(W) |
1100-1600mm | 43.3”-62.9”(W) |
1000-1500mm | 39.4”-59”(W) |
FAQ
A: Sure, we are eager to align with local companies and make a long-term partnership. For more details, kindly contact Vaka sales teams.
A: Yes, we have ISO 9001:2008, ISO4001:2004, CE, UL, TUV, EMC, SAA, BIMFA, etc.
A: Our wholesale MOQ is 30 sets, and sample orders’ MOQ is 1 set.
A: Yes. Our OEM&ODM service includes customizing product sizes, branding(eg: Putting your logo on the cartons, Printing your logo on the LED display), etc. The MOQ depends on your specific demands. Please contact our sales team for more details.
A: Around 15-30 working days for bulk orders, and 5 working days for samples. Special conditions need to be discussed.
A: We support a 5-year warranty for all parts, and replace defective parts one-for-one.
A: T/T, Paypal, Western Union, Moneygram, Paypal, etc. 30% deposit before mass production, and 70% for the balance before the shipment. But 100% payment for sample orders.
A: Sample orders are generally shipped by express, like DHL/UPS/FEDEX/TNT/ARMES.
Other order quantities over 10 sets are shipped by sea/train/truck.
Our sales teams will suggest the best shipping solution for you.
A: Sure welcome to visit our company Vaka in Guangzhou China. You just need to contact our sales teams to make the appointment, and we’ll arrange to pick you up at the airport or railway station once you arrive.
