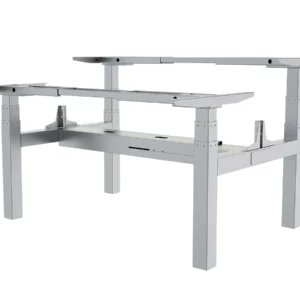

3-leg I-Shape 3-motor standing table frame 180°
An electric adjustable-height sit-stand meeting table allows users to maintain an ergonomic posture both while standing and sitting, so that can improve blood circulation, reduce backache/pain/stress/tension, and feel better having a meeting/team communication.
The I-shape 3-motor standing table frame provides a spacious and organized work surface, ideal for multitasking and small team meetings & communicating while optimizing workflow efficiency, suitable for small meeting tables and boss tables.
Highlights:
- Durable & stable — Adopt electric control systems from SAJ and Timotion.
- Quality material — Stainless steel thickness from 1.2~1.5mm; Powder coating thickness 60~120μm ensures the textured & elegant surface without orange peel.
- Quiet — Noise rate is less than the buzzing of a refrigerator when it’s working.
- Stable — Loading capacity up to 160kg. — High-weight capacity suitable for heavy-duty use and accommodates multiple monitors or other equipment.
- Safe — Sensitive anti-collision function.
- Optional: Bluetooth function, safety screen lock function, etc.
- Quality service — Low MOQ for OEM & ODM tailored office workstation projects.
Applications: Small team meeting tables, Boss tables.
Parameter
| Model | T330-180 series | U330-180 series |
|---|---|---|
| Product name | 3-motor I-shape meeting desk | |
| Drive mode | 3 motors | |
| Stages | 3 stages | |
| Max loading | 160kg | 150kg |
| Speed | 35mm/S | 32mm/S |
| Noise rate | ＜39DB | ＜49DB |
| Height range | 640—1290mm / Customized | |
| Beam | Double beams Main frame: 1075—1800mm(W); Side frame: 1375—1800mm(W) |
|
| Bracket | 700mm(L) / Customized | |
| Tube shape & size | Square 75*75mm / Rectangular 80*50mm | |
| Column shape | Upwards / Downwards | |
| Desk foot | Slope / Flat shape; 900mm(L) / Customized | |
| Thickness of painting | 60-120μm | |
| Colors | White / Black / Grey / Customized | |
| Functions options | Anti-collision Max & min height reset | Anti-collision Safety child lock Max & min height reset |
| Available voltage | 100V-240V; 50/60Hz | |
| Control systems brand | Timotion | Vaka |
| Handset | 4-memory buttons | 3-memory buttons |
| Certificate | CE, SAA, RoHS, CUL, BIFMA | |
| G.W. | 56kg | 52kg |
| Package size | Box A: 88 * 48 * 14cm Box B: 138 * 32 * 20cm | Box A: 108 * 45 * 14cm Box B: 79 * 44 * 17cm |
| Container loading capacity | 208pcs/20GP; 464pcs/40GP; 540pcs/40HQ (With pallets) | |
| Warranty | 5years | |
| Suitable tabletop size | 2100-3500mm(W) | |
