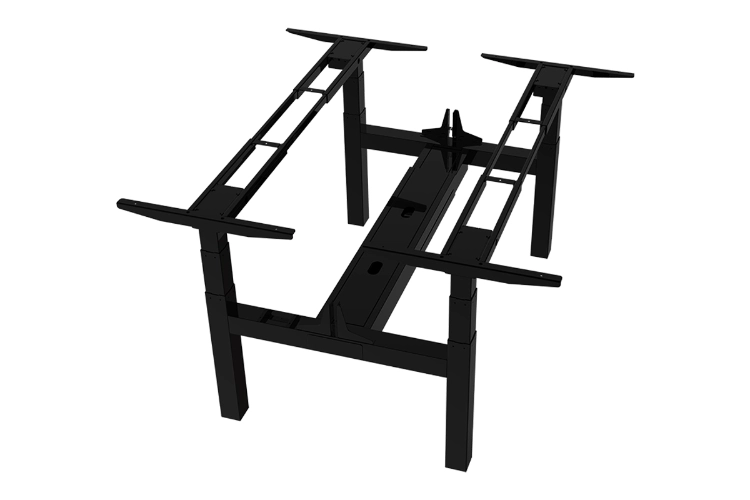

4-motor face-to-face standing desk workstation
Motor-driven adjustable height workstations allow staff to maintain an ergonomic posture both while standing and sitting, so that can improve blood circulation, reduce backache/pain/stress/tension, and feel better while working.
The face-to-face standing desk workstations come with inbuilt cable trays making the open plan office appearance neat, tidy, and comfortable.
Highlights:
- Durable & stable — Adopt electric control systems from Timotion and SAJ.
- Quality material — Stainless steel thickness from 1.2~1.5mm; Powder coating thickness 60~120μm ensures the textured & elegant surface without orange peel.
- Quiet — Noise rate is less than the buzzing of a refrigerator when it’s working.
- Stable — Loading capacity ranges from 120kg to 150kg per station. — High-weight capacity suitable for heavy-duty use and accommodates multiple monitors or other equipment.
- Safe — Sensitive anti-collision function.
- Optional: Bluetooth function, safety screen lock function, etc.
- Quality service — Low MOQ for OEM and ODM office workstation projects.
Applications: Office project workstations, Co-working stations.
Parameter
| Model | T340 series | U340 series |
|---|---|---|
| Product name | Face-to-face workstations | |
| Drive mode | 2*2 motors | |
| Stages | 3 stages | |
| Max loading | 2*150kg | 2*120kg |
| Speed | 40mm/S | 32mm/S |
| Noise rate | ＜39DB | ＜49DB |
| Height range | 640—1290mm / Customized | |
| Beam | Double beams 1075—1800mm(W) / Customized |
|
| Bracket | 600mm(L) / Customized | |
| Tube shape & size | Square 75*75mm / Rectangular 80*50mm | |
| Column shape | Upwards / Downwards | |
| Thickness of painting | 60-120μm | |
| Colors | White / Black / Grey / Customized | |
| Functions options | Anti-collision Max & min height reset | Anti-collision Safety child lock Max & min height reset |
| Available voltage | 100V-240V; 50/60Hz | |
| Control systems brand | Timotion | Vaka |
| Handset | 4-memory buttons | 3-memory buttons |
| Certificate | CE, SAA, RoHS, CUL, BIFMA | |
| G.W. | 76kg | 74kg |
| Package size | 2 * Box A: 108 * 32 * 28cm; 1 * Box B: 126 * 54 * 15cm | |
| Container loading capacity | 78pcs/20GP; 160pcs/40GP; 190pcs/40HQ (With pallets) | |
| Warranty | 5years | |
| Suitable tabletop size | 1100-1800mm(W) | |
