2-leg 1-motor standing desk
A motor-driven height-adjustable sit-to-stand desk allows users to maintain an ergonomic posture both while standing and sitting effortlessly & efficiently, so that can improve blood circulation, reduce backache/pain/stress/tension, and feel better as work/study.
Compared with a manual standing desk frame, the 1-motor standing desk frame features electric control systems that allow users to adjust desk heights and to maintain ergonomic postures both while standing and sitting effortlessly and efficiently, so that improves blood circulation, reduces backache/pain/stress/tension, and feel better as work/study.
Compared with a dual-motor standing desk, the single-motor standing desk is budget options, while won’t sacrifice too much performance of a height adjustable standing desk.
Highlights:
- Durable & stable — Adopt electric control systems from Timotion and SAJ.
- Quality material — Stainless steel thickness from 1.2~1.5mm; Powder coating thickness 60~120μm ensures the textured & elegant surface without orange peel.
- Quiet — Noise rate is less than the buzzing of a refrigerator when it’s working.
- Stable — Loading capacity ranges from 80kg to 100kg. — High-weight capacity suitable for heavy-duty use and accommodates multiple monitors or other equipment.
- Safe — Sensitive anti-collision function.
- Optional: Bluetooth function, safety screen lock function, etc.
- Quality service — Low MOQ for OEM/ODM tailored standing desks.

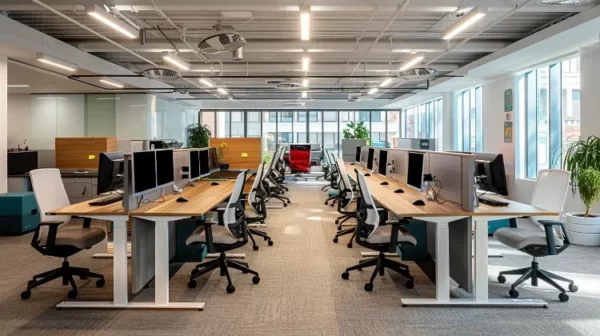

Applications: Office single workstation, Co-working station, Home office.
Model | U220 series | M220 series | E220 series |
---|---|---|---|
Product name | Single-motor straight desk | ||
Drive mode | 1 motor | ||
Stages | 2 stages | ||
Max loading | 90kg | 90kg | 80kg |
Speed | 25mm/S | 25mm/S | 23mm/S |
Noise rate | <49DB | ||
Height range | 710—1160mm / Customized | 740—1240mm / Customized | 710—1180mm / Customized |
Beam | Double beams 1075—1800mm(W) / Customized | Double beams 1075—1600mm(W) / Customized | Single beam 900—1300mm(W) / Customized |
Bracket | 600mm(L) / Customized | 575mm(L) / Customized | 450mm(L) / Customized |
Tube shape & size | Square 75*75mm / Rectangular 80*50mm | ||
Column shape | Upwards / Downwards | Upwards / Downwards | Downwards |
Desk foot | Slope / Flat shape 700mm(L) / Customized | Slope / Flat shape 700mm(L) / Customized | Slope / Flat shape 600mm(L) / Customized |
Thickness of painting | 60-120μm | 60-120μm | 60-100μm |
Colors | White / Black / Grey / Customized | ||
Functions options | Anti-collision Max & min height reset | Anti-collision Safety child lock Max & min height reset | Anti-collision |
Available voltage | 100V-240V; 50/60Hz | ||
Control systems brand | Vaka | SAJ | Vaka |
Handset | 4-memory buttons | 3-memory buttons | 3-memory buttons |
Certificate | CE, SAA, RoHS, CUL, BIFMA | ||
G.W. | 27kg | 25kg | 18.5kg |
Package size | 108 * 32 * 24cm | 108 * 27 * 24cm | 113 * 23 * 20cm |
Container loading capacity | 288pcs/20GP; 648pcs/40GP; 720pcs/40HQ (With pallets) | ||
Warranty | 5years | ||
Suitable tabletop size | 1100-1800mm(W) | 1100-1600mm(W) | 1000-1500mm(W) |
